$70
Download heaving mode oscillating airfoil Ansys CFX analysis and result files.
Download files here
Files are password protected. Please complete the payment to get the password. Password is required to unzip the downloaded files.
Version: Ansys CFX v14.5 and higher
Contents: CAD, Icem Mesh, CFX case and result files.
Kindly check description for more details.

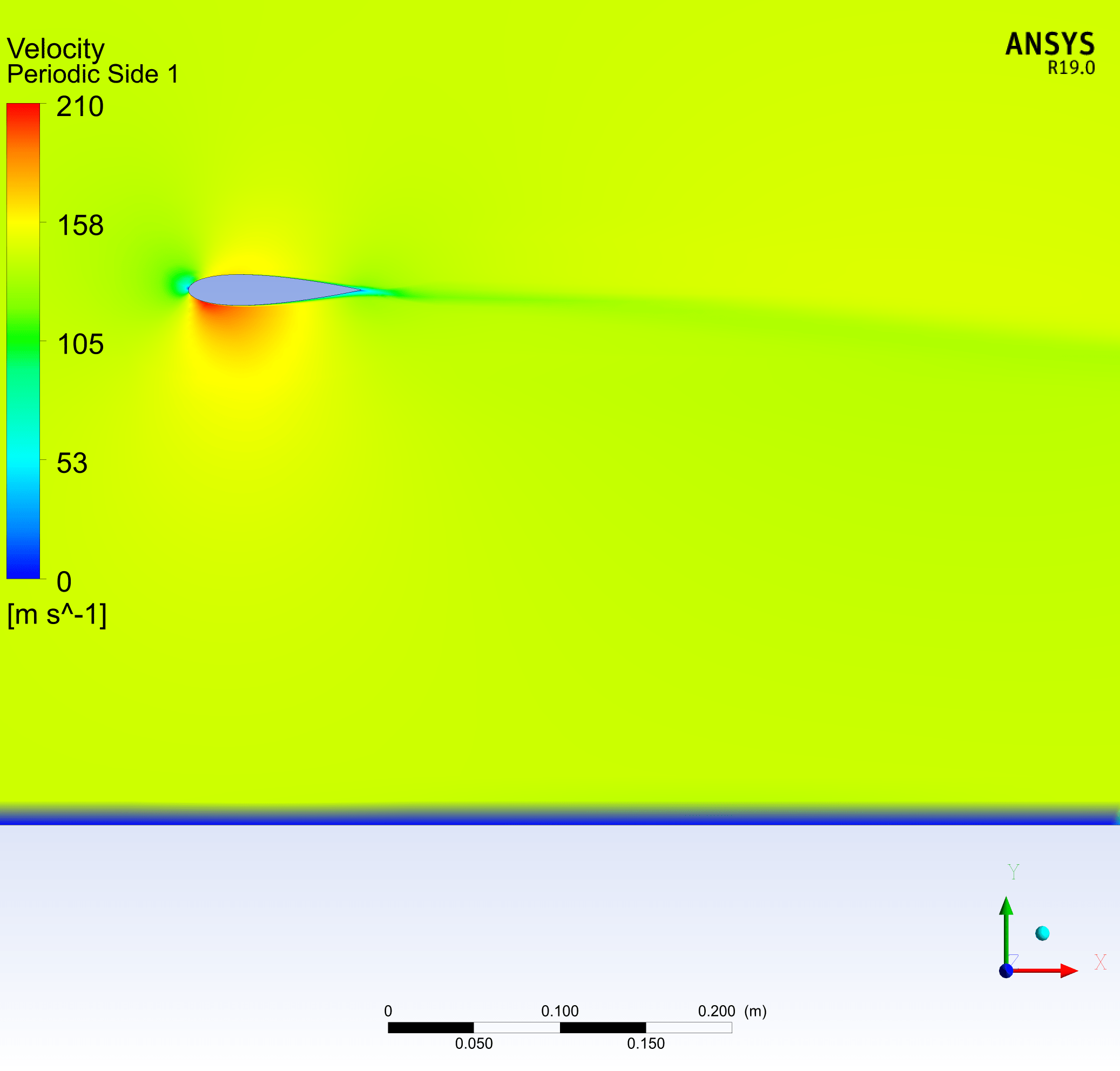

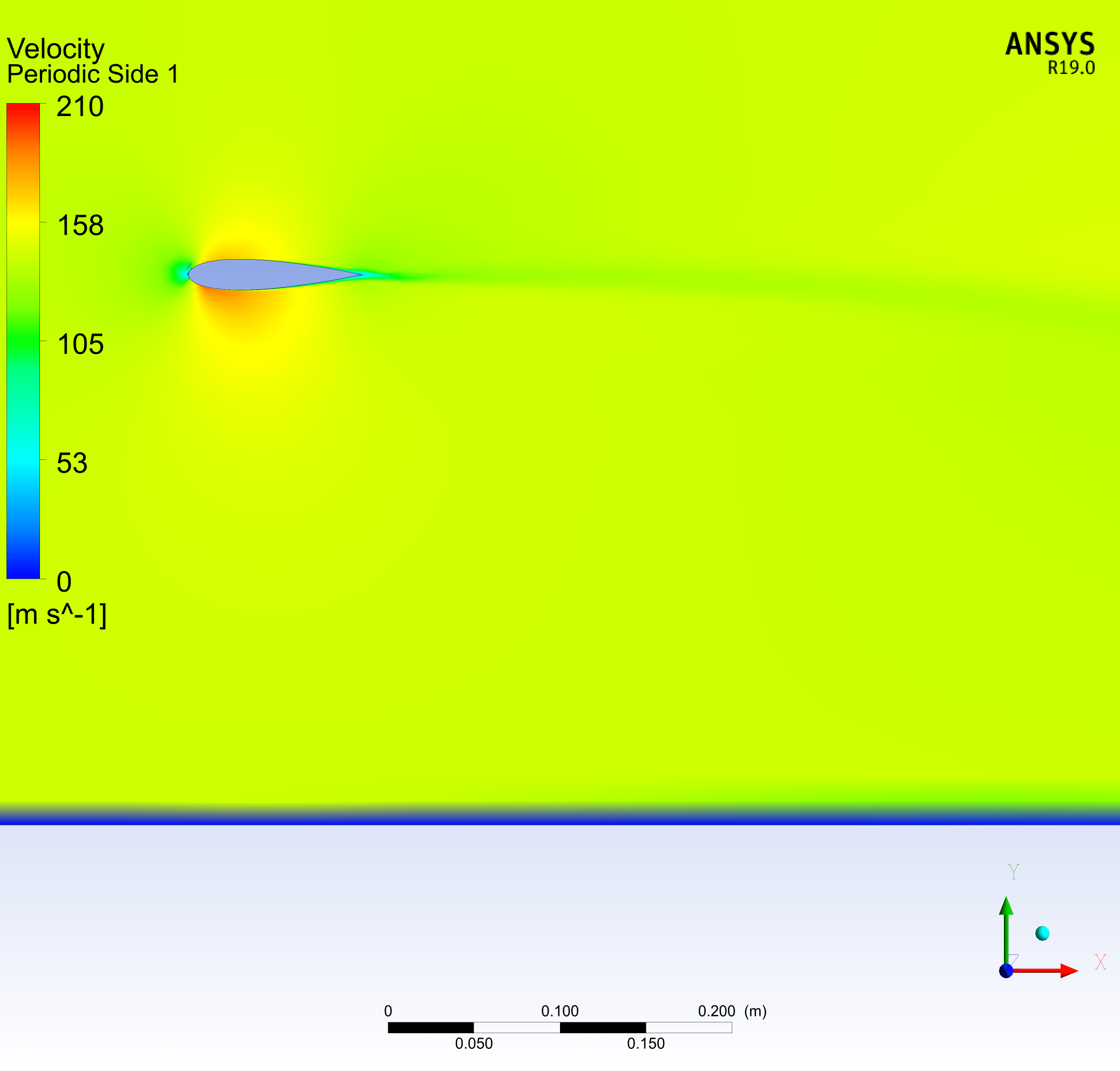

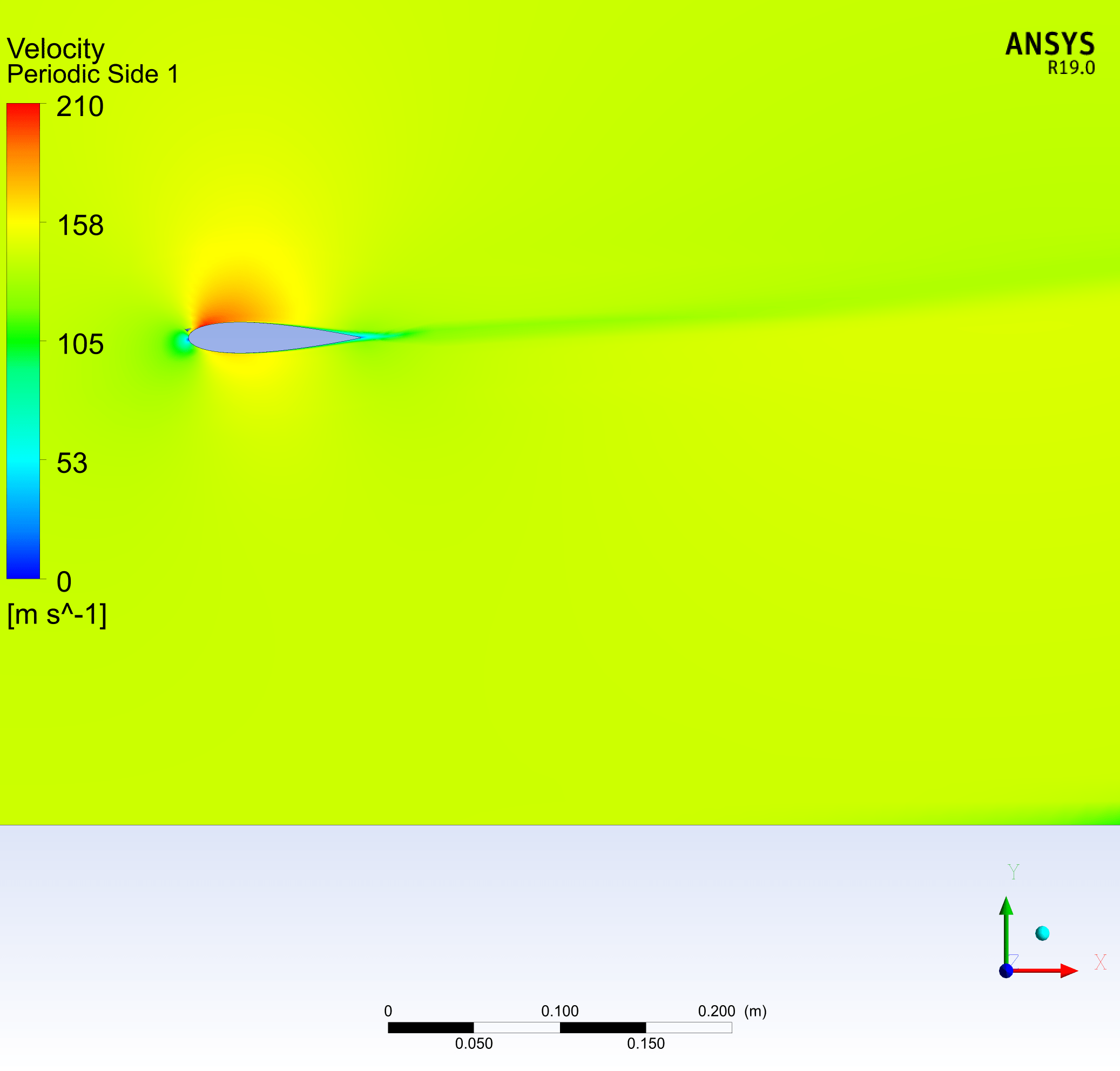

This file set contains unsteady CFD simulation results of flow over an oscillating airfoil (Heaving mode) using Ansys-CFX. Check the video tutorial for more details.
Analysis mode: Unsteady State RANS with pitch mode oscillation
Turbulence model : k-w sst
